TOROIDAL TRANSFORMERS > MEDICAL ISOLATION TRANSFORMER
Enlarge

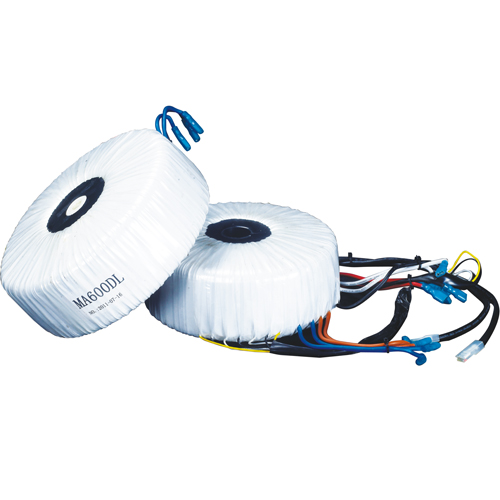

Model:Toroidal Medical
Toroidal transformers ranged from 100VA - 10000VA for medical isolation appication. Customized design welcome.
Features:

Toroidal Transformer for Medical



Scientek designs and produces medical grade high isolation toroidal transformer for wide Medical equipment application.

The transformer manufactured with double reinforced insulation and builtin thermal protection against overload and

short circuit conditions. It characterizes by static shielding with low leakage current and high reliability.

Brief Specification

ü Power Range: 100VA -10000VA

ü Input: On request

ü Output: On request

ü Insulation Class: UL class B. F. H. N.(Optional)

ü Isolation: 4KV (Hi-pot)



Rated Power

Dimension D*H

Weight

Temp. Rise

Approval

100VA

100mm*50mm

1.25Kg

 51℃

CE/CQC/RoHS/UL

230VA

120mm*60mm

2.35Kg

 53℃

CE/CQC/RoHS/UL

400VA

140mm*60mm

3.57Kg

 54℃

CE/CQC/RoHS/UL

600VA

155mm*75mm

5.12Kg

 56℃

CE/CQC/RoHS/UL

750VA

165mm*77mm

6.37Kg

 57℃

CE/CQC/RoHS/UL

1000VA

175mm*88mm

8.50Kg

 58℃

CE/CQC/RoHS/UL

1500VA

208mm*100mm

11.70Kg

 69℃

CE/CQC/RoHS/UL

2000VA

208mm*125mm

14.70Kg

 60℃

CE/CQC/RoHS/UL

2500VA

215mm*130mm

17.70Kg

 61℃

CE/CQC/RoHS/UL

3000VA

225mm*140mm

20.12Kg

 62℃

CE/CQC/RoHS/UL

5000VA

260mm*150mm

29.20Kg

 63℃

CE/CQC/RoHS/UL

10000VA

320mm*155mm

51.00Kg

 65℃

CE/CQC/RoHS/UL
