R CORE TRANSFORMER > R CORE TRANSFORMER
Enlarge

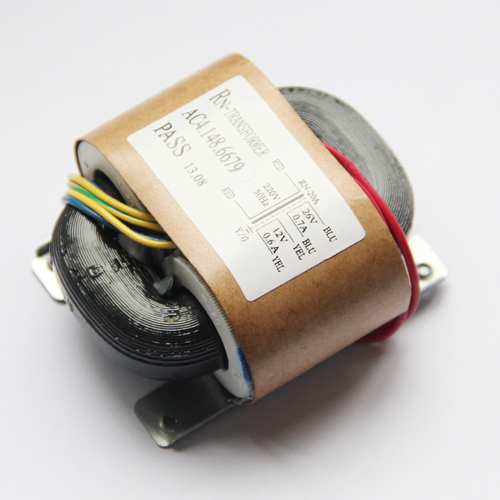

Model:RN-20A07

R core transformer,customized design welcome.

Features:

R core transformer
R core transformer with novel and unique construction,It is windly used in Medical equipment;Display equipment;Auio devices,Office equipment.It has such many advantages as below,so it is popular in the market.

ü Small size&less weight

ü Low core loss

ü Low no-load current

ü Low inrush current

ü Low leakage flux

ü Low temperature rise

ü Excellent insulation and finishing

ü No mechanical noise

ü High efficiency

ü High dielctric strength&excellent fire resistance

ü Internal resistance is small&low copper loss



Brief Specification

ü Power Range: 0-22W Load:18.2W; 0-9W Load:7.2W

ü Input: 0-20V

ü Output: 0-31.4V(0.7A) Load:26V; 0-14V(0.6A) Load:12V

ü No-load current: 220V/50Hz≤20MA

ü Pitch-row: 47±0.5M; Pitch-row2:67±0.5MM

ü Height:40±1MM

ü Center hole tap: M3

ü Customized design are always welcome
