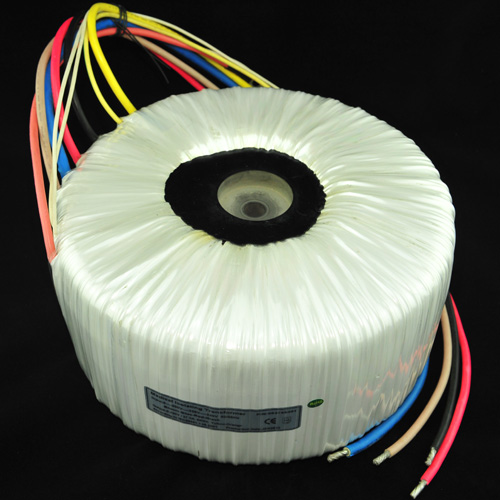

Toroidal Transformer and Inductor for Solar Power
Scientek toroidal transformer for solar power system featured with High efficiency, low inrush current and low
mechanical noise characteristics which are popular in the market.
Brief Specification
ü Power Range:1000VA - 30KVA
ü Phase: Single / Three phase
ü Input/Output: Customized
ü Insulation Class: UL class B. F. H. N.(Optional)
ü Isolation: 4KV (Hi-pot)
|
Rated Power |
Efficiency |
Dimension D*H |
Weight |
Approval |
|
1000VA |
97.0% |
175mm*85mm |
9.10Kg |
CE/CQC |
|
1500VA |
97.0% |
195mm*85mm |
11.5Kg |
CE/CQC |
|
2000VA |
97.5% |
210mm*90mm |
14.7Kg |
CE/CQC |
|
2500VA |
97.5% |
210mm*100mm |
16.7Kg |
CE/CQC |
|
3000VA |
97.5% |
215mm*105mm |
17.7Kg |
CE/CQC |
|
3500VA |
97.7% |
230mm*115mm |
21.8Kg |
CE/CQC |
|
4800VA |
98.0% |
245mm*150mm |
31.2Kg |
CE/CQC |
|
5200VA |
98.3% |
245mm*150mm |
31.2Kg |
CE/CQC |
|
