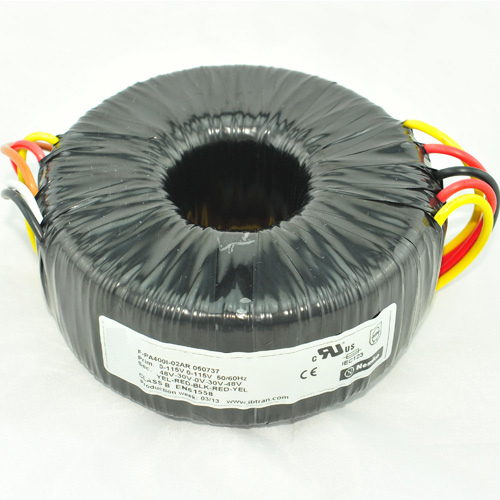

Toroidal Transformer for Testing Equipment
Scientek Toroidal Transformer for High-end Testing Equipment is optimized design with low temperature rise, high efficiency and high reliability.
Brief Specification
ü Power Range: 100VA -1000VA
ü Input: On request
ü Output: On request
ü Insulation Class: UL class B. F. H. N.(Optional)
ü Isolation: 4KV (Hi-pot)
|
Rated Power |
Dimension D*H |
Weight |
Temp. Rise |
Approval |
|
100VA |
95mm*45mm |
1.24Kg |
51℃ |
CE/CQC/RoHS/UL |
|
300VA |
125mm*56mm |
2.95Kg |
53℃ |
CE/CQC/RoHS/UL |
|
500VA |
140mm*65mm |
4.20Kg |
55℃ |
CE/CQC/RoHS/UL |
|
600VA |
146mm*71mm |
5.20Kg |
56℃ |
CE/CQC/RoHS/UL |
|
800VA |
170mm*65mm |
6.30Kg |
57℃ |
CE/CQC/RoHS/UL |
|
1000VA |
170mm*75mm |
7.20Kg |
58℃ |
CE/CQC/RoHS/UL |
|
