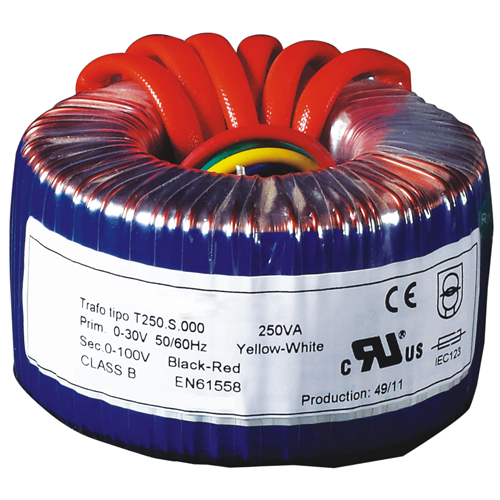

Toroidal Transformer for Industrial Control
25VA to 2500VA toroidal transformer for industrial controlling systems, with high reliability,
high efficiency and excellent insulation and finishing.
Widely used in motor controller system and auto door system.
Brief Specifications
ü Power Range:25VA - 2500VA
ü Input & Output: Customized specifications.
ü Insulation Class: UL class B. F. H. N.(Optional)
ü Isolation: 4KV (Hi-pot)
|
Rated Power |
Frequency |
Dimension D*H |
Weight |
Temp. Rise |
Approval |
|
25VA |
50/60Hz |
80mm*32mm |
0.54Kg |
30℃ |
CE/CQC |
|
50VA |
50/60Hz |
80mm*37mm |
0.71Kg |
45℃ |
CE/CQC |
|
100VA |
50/60Hz |
95mm*45mm |
1.24Kg |
51℃ |
CE/CQC |
|
160VA |
50/60Hz |
103mm*47mm |
1.75Kg |
53℃ |
CE/CQC |
|
250VA |
50/60Hz |
118mm*53mm |
2.36Kg |
53℃ |
CE/CQC |
|
500VA |
50/60Hz |
140mm*65mm |
4.2Kg |
55℃ |
CE/CQC |
|
1000VA |
50/60Hz |
170mm*75mm |
7.2Kg |
58℃ |
CE/CQC |
|
2500VA |
50/60Hz |
190mm*115mm |
14.5Kg |
63℃ |
CE/CQC |
|
