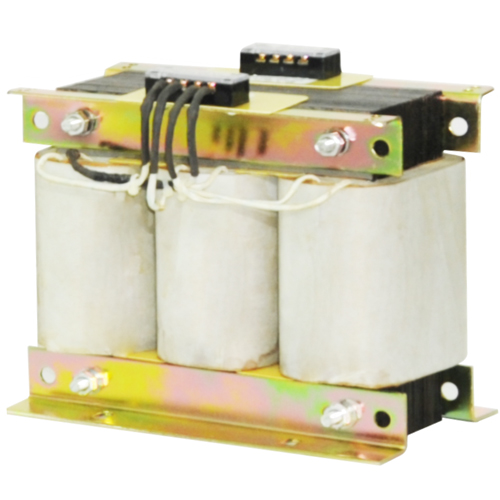

Three Phase Toroidal Transformer
Scientek’s three phase toroidal transformer featured with high reliability and flexible connections.
Widely used for Knitting machine, medical, energy, robotics and industrial power applications.
Brief Specification
ü Power Range: 1000VA -30000VA
ü Input: On request
ü Output: On request
ü Insulation Class: UL class B. F. H. N.(Optional)
ü Isolation: 4KV (Hi-pot)
|
Power
(VA) |
L
(mm) |
L1
(mm) |
W
(mm) |
W1
(mm) |
H
(mm) |
Mounting Hole(mm) |
Weight
(kg) |
Temperature Rise
℃ |
|
1000 |
360 |
345 |
115 |
95 |
75 |
Ø7*10 |
9.5 |
54 |
|
3000 |
480 |
465 |
150 |
130 |
95 |
Ø7*10 |
21.5 |
58 |
|
6000 |
460 |
405 |
210 |
180 |
270 |
Ø9*15 |
40 |
62 |
|
9000 |
460 |
405 |
210 |
180 |
285 |
Ø9*15 |
54 |
64 |
|
15000 |
480 |
425 |
231 |
196 |
300 |
Ø10.6*30 |
80 |
65 |
|
25000 |
500 |
445 |
241 |
206 |
320 |
Ø10.6*30 |
100 |
66 |
|
30K |
530 |
475 |
265 |
230 |
360 |
Ø10.6*30 |
120 |
68 |
|
