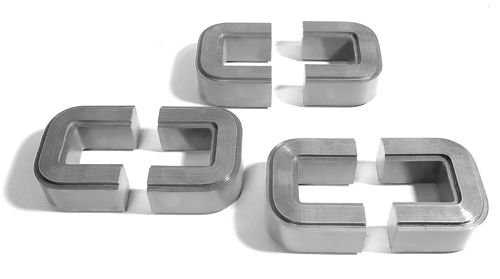

Model:step wound iron core

step wound iron core is winded by multiterm strips with different width, the cross section of step wound core is symmetric stepped

Step wound iron core

Materials:

We use high quality CRGO steels with low iron-losses and high permeability in thickness 0.23,0.27,0.30mm, to meet customers’ demand for different quality.

Characteristic:
The step wound core is winded by multiterm strips with different width, the cross section of step wound core is symmetric stepped type, rectangular window, magnetic circuit close completely, no magnetic flux leakage, superior performance.

Application:
Widely used in power distribution transformer, instrument transformer, electromagnetic components.
