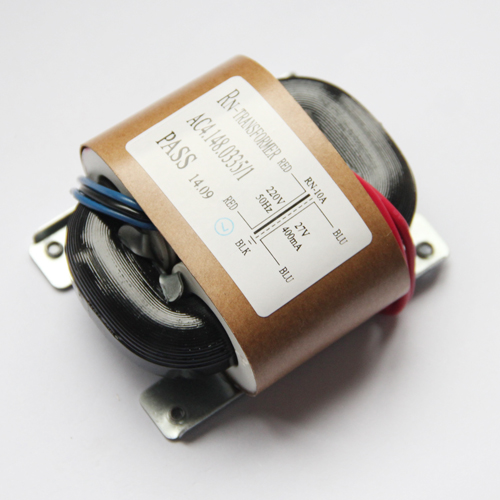

R core transformer
R core transformer with novel and unique construction,It is windly used in Medical equipment;Display equipment;Auio devices,Office equipment.It has such many advantages as below,so it is popular in the market.
ü Small size&less weight
ü Low core loss
ü Low no-load current
ü Low inrush current
ü Low leakage flux
ü Low temperature rise
ü Excellent insulation and finishing
ü No mechanical noise
ü High efficiency
ü High dielctric strength&excellent fire resistance
ü Internal resistance is small&low copper loss
Brief Specification
ü Power Range: 0-13W Load:10.8W
ü Input: 0-220V
ü Output: 0-32.2V(0.4A) Load:27V
ü No-load current: 220V/50Hz≤15MA
ü Pitch-row: 47±0.5M; Pitch-row2:67±0.5MM
ü Height:40±1MM
ü Center hole tap: M3
ü Customized design are always welcome
|
